Anti-rotation wire rope socket is general used for wire rope in port crane with higher hoisting height. Its main purpose is to release the twist of wire rope in use, and balance weight of wire rope. And the failure rate of it is very low.

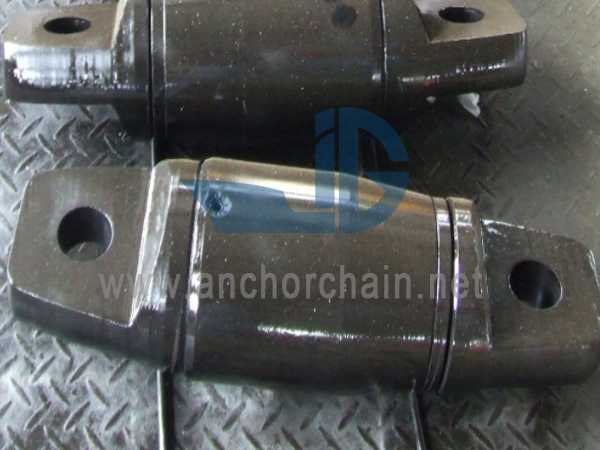

Anti-rotation Wire Rope Socket
Anti-rotation wire rope socket is general used for wire rope in port crane with higher hoisting height. Its main purpose is to release the twist of wire rope in use, and balance weight of wire rope. And the failure rate of it is very low.
Product Details:
1. Model: Anti-rotation wire rope socket
2. Material: Alloy steel
3. Technology: Drop forged
4. Usage: Wire rope fitting
5. SWL: 5T-50T
6. Weight: 27kg-176kg
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:
Item No.
SWL
Weight
B
B1
D
D1
L
ton
kg
mm
mm
mm
mm
mm
HS-01
5
27
40
28
130
43
330
HS-02
10
60
48
32
170
53
450
HS-03
16
80
56
40
190
57
590
HS-04
25
103
64
50
228
61
470
HS-05
40
140
75
60
230
75
480
HS-06
50
176
100
85
260
85
600
