China high quality JIS Marine Globe Valves for Shipbuilding Manufacturers and Suppliers - Yangzhou LIG Marine Machinery Co., Ltd. We are looking forward to your cooperation!
We are high quality JIS Marine Globe Valves for Shipbuilding made in China, with advanced craftsmanship. You can rest assured to buy our JIS Marine Globe Valves for Shipbuilding, if you need our quotation, we can provide a price list.
KITZ Bronze Globe Valve Product model: DBH Operating temperature: 220℃ Working pressure: 16kg Applicable medium: W.O.G Product remarks: KITZ valve Sales Unit: KITZ Valve
JIS F 7471 Cast Steel 10K Screw-Down Check Globe Valves Marine Cast Steel Screw Down Check Angle Valve also can be called as Marine Cast Steel Angle SDNR Valve or SDNR Angle Valve. It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 300 centigrade degree. Design Standard: JIS F7471-1996
JIS F 7319 Cast Steel 10K Globe Valves 1. Application The products are used for controlling the medium to open and close ,preventing refluence in fuel oil piping, lubricating piping. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.

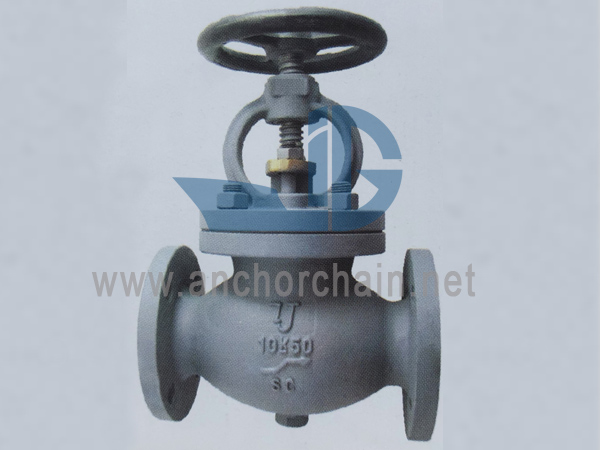

JIS F 7311 Cast Steel 5K Globe Valves Design Standard: JIS F7311-1996 Test Standard: JIS 7400-1996 Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa Flange size as per JIS B2220 - 5K
JIS F 7417 Bronze 16K Lift Check Globe Valves Union Bonnet Type 1. Application The products are used for controlling the medium to open and close ,preventing refluence in fuel oil piping, lubricating piping. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.

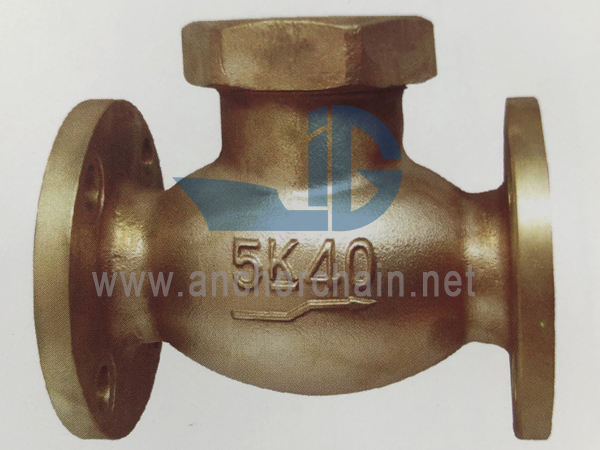

JIS F 7415 Bronze 5K Lift Check Globe Valves Union Bonnet Type 1.Test standard: JISF7400. 2.End standard: JISB2220. 3.End type:Flange. 4.Pressure: 5k. 5.DN: 15mm-40mm.
Class 150 Bronze 10K SDNR Valves OpenClose Indicator Test Standard: JIS F7400-1996 Test Pressure: Body-1.05Mpa, Seat-0.77Mpa Main Material: 1-Body: Bronze (BC6) 2-Bonnet:Brass (C3771BD) 3-Disc:Brass (C3771BD) 4-Stem: Brass (C3771BD) 5-Handwheel: Cast Iron (FC200)
Class 150 Bronze 5K SDNR Valves OpenClose Indicator Test Standard: JIS F7400-1996 Test Pressure: Body-1.05Mpa, Seat-0.77Mpa
Class 150 Bronze 10K Globe Valves OpenClose Indicator 1. Application The valve is used for shipbuilding, ship repair and oil platform with high quality. 2. Material (1) . - Body: bronze (2) . - Bonnet: brass (3) . - Disc: brass (4) . - Stem: brass
