Bottom Twistlock

Bottom Twistlock

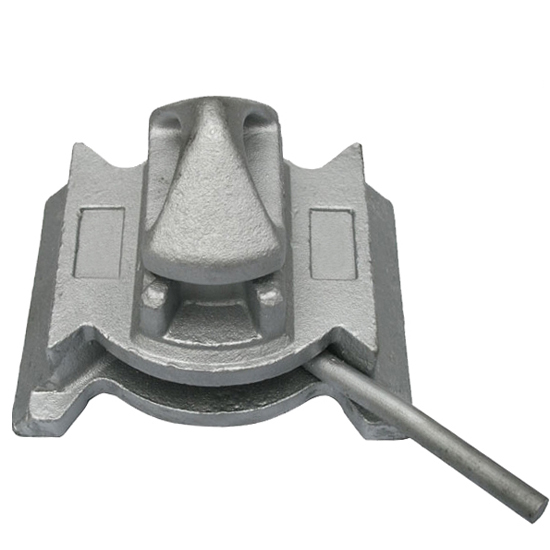

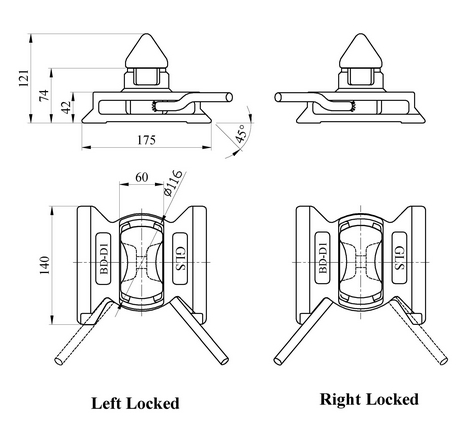

Dovetail bottom twistlock is used with dovetail foundation to fix the bottom of container. It is designed with a flat base that can be installed in a slipper frame or welded directly. They are perfect for connecting shipping containers to any other structure.

Send Inquiry

Product Description

Dovetail bottom twistlock is used with dovetail foundation to fix the bottom of container. It is designed with a flat base that can be installed in a slipper frame or welded directly. They are perfect for connecting shipping containers to any other structure.

Product Details:
1. Material:Forged steel
2. Surface treatment: Hot dip galvanized
3. Finish: Shop primer
4. Application: Container, shipping
5. Weight: 5.8KG, 6.4KG
6. M.B.L tension: 500KN
7. M.B.L shear: 420KN
8. M.B.L compression: 2000KN
9.  All items are proves by major classification societies.

Our scope of container fittings are the follows:
D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.
