JIS F 7301 5K SCS16 Stainless Steel Globe Valves

JIS F 7301 5K SCS16 Stainless Steel Globe Valves Marine Stainless Steel Globe Valve or Marine Brass Globe Valve can be called as Marine Stainless Steel/Brass Stop Valve. Function: Open/Close the pipe system Design Standard: JIS F7301-1996

Send Inquiry

Product Description

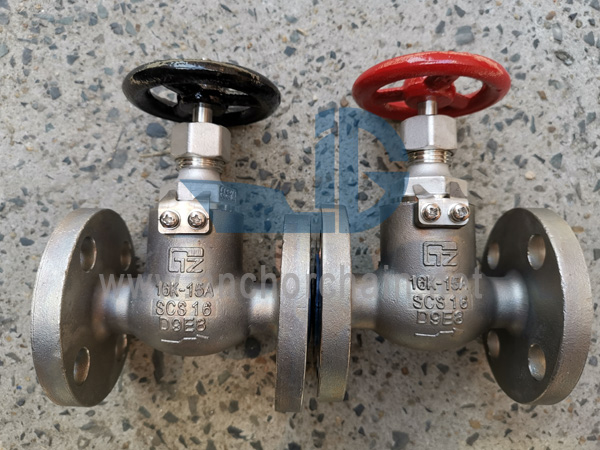

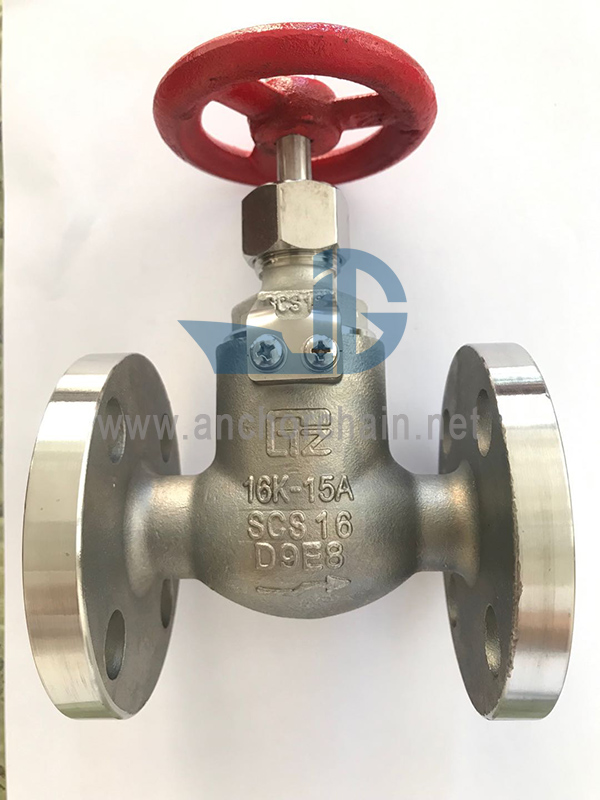

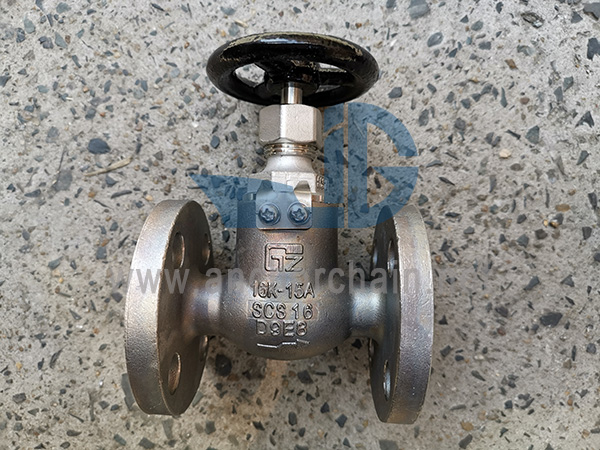

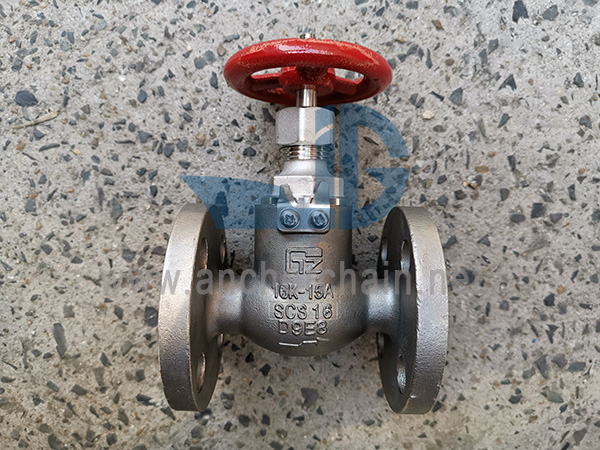

JIS F 7301 5K SCS16 Stainless Steel Globe Valves
Marine Stainless Steel Globe Valve or Marine Brass Globe Valve can be called as Marine Stainless Steel/Brass Stop Valve.
Function: Open/Close the pipe system
Design Standard: JIS F7301-1996
Test Standard: JIS F7400-1996
Test Pressure: Body-1.05Mpa, Seat-0.77Mpa
Flange Size as per JIS B2220-5K

*DN15-DN40 with screwed bonnet, DN50-DN65 with bolted bonnet





Main Material:
1-Body: Stainless Steel(SCS16)/SUS316L
2-Disc: Stainless Steel(SCS16)/SUS316L
3-Stem: Stainless Steel(SCS16)/SUS316L
4-Bonnet: Stainless Steel(SCS16)/SUS316L
5-Handwheel: Cast Iron (FC200)




Main Size List(mm):

IMPA Code Size Face to Face (L) Flange diam. (D) Pitch (C) No of Bolt Hole h t H D2
750121 15 100 80 60 4 12 9 130 80
750122 20 110 85 65 4 12 10 140 100
750123 25 120 95 75 4 12 10 160 125
750124 32 140 115 90 4 15 12 170 125
750125 40 160 120 95 4 15 12 190 140
750126 50 210 130 105 4 15 14 235 140
750127 65 250 155 130 4 15 14 260 160
