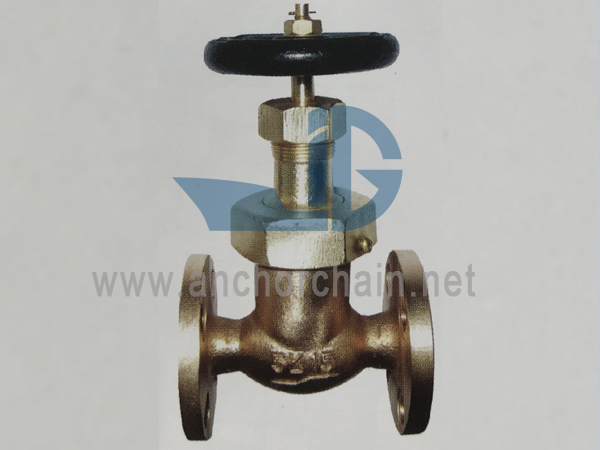

JIS F 7413 Bronze 16K Screw Down Check Globe Valves Union Bonnet Type 1. Application The valve is used for shipbuilding, ship repair and oil platform with high quality. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.
JIS F 7413 Bronze 16K Screw Down Check Globe Valves Union Bonnet Type
1. Application
The valve is used for shipbuilding, ship repair and oil platform with high quality. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.
2. Material
(1) . - Body: bronze
(2) . - bonnet: bronze
(3) . - Disc: bronze or brass
(4) . - Disc Nut: brass
(5) . - Packing Gland: brass
(6) . - Gland Nut: brass
(7) . - Stem: brass
(8) . - Handwheel: cast iron
(9) .- Hand Nut: steel
(10) . - Packing: non asbestos
(11) . - washer: steel
(12) . - split Pin: brass
(13) . - Bonnet Nut: bronze
(14) . - Indicator Plate: brass
(15) . - Indicator Piece: brass
3. Nominal Diameter ＆ Pressure
Diameter: DN15~DN40
Pressure: 5K
4. Features
(1). Manufactured according to JIS F7400 standards. The valve material can be chosen by customers.
(2). Well-selected materials, meet with domestic and foreign standards, reasonable structure, beautiful shape.
(3). We provide OEM service, accept customer label, develop the product with your drawings or samples.
5. Main Size List
|
IMPA Code |
Model
|
L |
D
|
C
|
No. |
h |
t |
H |
D2 |
|
751281 |
7413 16K15 |
110 |
95 |
70 |
4 |
15 |
12 |
155 |
80 |
|
751282 |
7413 16K20 |
120 |
100 |
75 |
4 |
15 |
14 |
165 |
100 |
|
751283 |
7413 16K25 |
130 |
125 |
90 |
4 |
19 |
14 |
185 |
125 |
|
751284 |
7413 16K32 |
160 |
135 |
100 |
4 |
19 |
16 |
195 |
125 |
|
751285 |
7413 16K40 |
180 |
140 |
105 |
4 |
19 |
16 |
210 |
140 |
6. IACS Certificate: BV, ABS, LR, CCS, RINA.
