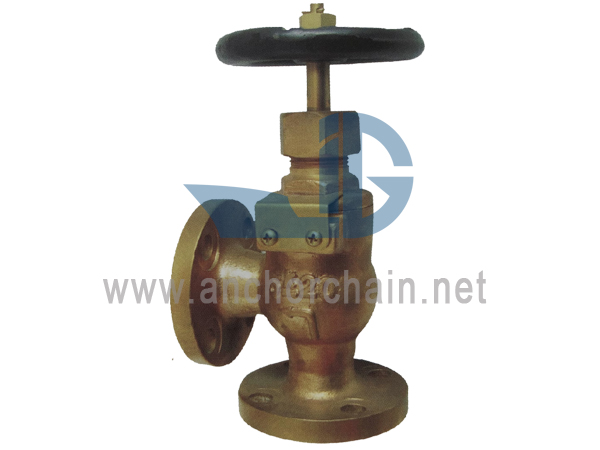

JIS F 7414 Bronze 16K Screw-Down Check Anglee Valves (Union Bonnet Type)
1. Application
The valve is used for shipbuilding, ship repair and oil platform with high quality.Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.
2. Material
(1) . - Body: bronze
(2) . - bonnet: bronze
(3) . - bonnet Nut: bronze
(4) . - Disc: bronze / brass
(5) . - Disc Nut: brass
(6) . - Packing Gland: brass
(7) . - Gland Nut: brass
(8) . - Stem: brass
(9) . - Handwheel: cast iron
(10) .- Hexagon Nut: steel
(11) . - split Pin: brass
(12) . - Disc Lock Washer: brass
(13) . - Packing: non asbestos
(14) . - Gasket: non asbestos
(15) . - Washer: steel
(16) . - Indicator Plate: brass
(17) . - Indicator Piece: brass
3. Nominal Diameter ＆ Pressure
Diameter: DN15~DN40
Pressure: 5K
4. Features
(1). Manufactured according to JIS F7400 standards. The valve material can be chosen by customers.
(2). Well-selected materials, meet with domestic and foreign standards, reasonable structure, beautiful shape.
(3). Any question, will be replyed within 24 hours
5. Main Size List
|
IMPA Code |
Model
|
L |
D
|
C
|
No. |
h |
t |
H |
D2 |
|
751286 |
7414 16K15 |
70 |
95 |
70 |
4 |
15 |
12 |
145 |
80 |
|
751287 |
7414 16K20 |
75 |
100 |
75 |
4 |
15 |
14 |
155 |
100 |
|
751288 |
7414 16K25 |
85 |
125 |
90 |
4 |
19 |
14 |
175 |
125 |
|
751289 |
7414 16K32 |
95 |
135 |
100 |
4 |
19 |
16 |
175 |
125 |
|
751290 |
7414 16K40 |
100 |
140 |
105 |
4 |
19 |
16 |
190 |
140 |
6. IACS Certificate: BV, ABS, CCS, LR, RINA.
